Rips CDs and individual tracks to M4A files. More...

#include <cd_ripper.h>

Inheritance diagram for CDRipper:

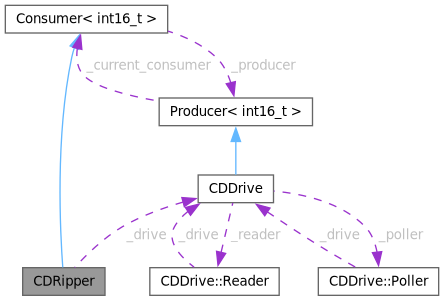

Collaboration diagram for CDRipper:

[legend]

Classes
struct	NoMedia
	Thrown when there is no removable volume to rip to. More...

struct	RipContext
	Contains resources that are shared by private helper functions. More...

struct	RipperErrorException
	Thrown when an error occurs mid-rip. More...

Public Types
typedef sigc::signal< void(unsigned int, unsigned int)>	sig_track_progress
	"Track progress made" signal type.

typedef sigc::signal< void(void)>	sig_done
	"Rip done" signal type.

Public Member Functions
sig_track_progress	signal_track_progress ()
	Getter for ::_signal_track_progress.

sig_done	signal_done ()
	Getter for ::_signal_done.

	CDRipper (CDDrive &drive, const DiscDB::Disc &disc, const std::string &albumArtURL, const std::string &mediaRoot)
	CDRipper constructor.

	~CDRipper ()
	CDRipper destructor.

void	rip ()
	Rip the entire disc.

void	rip (const int track)
	Rip a specific track on the disc.

Public Member Functions inherited from Consumer< int16_t >
	Consumer ()
	Consumer constructor.

virtual	~Consumer ()
	Consumer destructor.

virtual void	producer (Producer< int16_t > *const producer)
	Sets the producer from which to retrieve data.

Private Member Functions
std::string	make_safe (const std::string &str) const
	Used to sanitize folder and file names.

void	on_notification ()
	Called when _dispatcher is notified.

void	on_done_notification ()
	Called when _dispatcher_done is notified.

void	rip_helper ()
	Private helper for rip().

void	rip_helper (const int track)
	Private helper for rip(const int track).

void	ensure_output_dir ()
	Verifies _media_root exists and sets _output_dir.

void	start_rip (RipContext *rip_ctx)
	Begins the ripping process.

void	do_rip (RipContext *rip_ctx, bool continuous=true)
	The core ripping method interacting directly with ffmpeg.

void	end_rip (RipContext *rip_ctx)
	Ends the ripping process.

void	start_file (RipContext *rip_ctx)
	Creates the ouput file, tags it and writes the M4A header.

void	end_file (RipContext *rip_ctx)
	Frees resources in the ripping context specific to the output file.

void	tag_file (RipContext *rip_ctx)
	Adds textual metadata (album and track information) to the output file.

void	add_file_art (RipContext *rip_ctx)
	Adds _album_art_image to the output file.

Private Attributes
sig_track_progress	_sig_track_progress
	Emitted when the percentage progress ripping a track has increased.

sig_done	_sig_done
	Emiited when the rip (whole disc or single track) is done.

CDDrive &	_drive
	The parent CDDrive.

const DiscDB::Disc &	_disc
	The fully populated DiscDB::Disc describing the album.

std::thread *	_thread
	Used to execute the ripping process.

Glib::Dispatcher	_dispatcher
	Used by _thread to safely emit _sig_track_progress.

Glib::Dispatcher	_dispatcher_done
	Used by _thread to safely emit _sig_done.

unsigned int	_track
	The 1-based index of the track currently being ripped.

unsigned int	_progress
	The current percentage completion ripping the current track.

std::string	_media_root
	The path to the root of the removable volume.

std::string	_output_dir
	The path to the album folder on the removable volume.

std::string	_output_filename
	The output filename.

std::string	_album_art_url
	The URL of the album art currently shown.

uint8_t *	_album_art_image
	Raw bytes received from the _album_art_url.

int	_album_art_image_size
	The size of _album_art_image.

AVCodecID	_album_art_image_codec
	Reflects whether the _album_art_image is JPEG or PNG.

std::pair< int, int >	_album_art_image_dims
	The dimensions of _album_art_image in pixels.

Additional Inherited Members
Protected Member Functions inherited from Consumer< int16_t >
int16_t	consume () const
	Returns one datum from the producer.

Detailed Description

Rips CDs and individual tracks to M4A files.

See also: Producer/Consumer.

Definition at line 41 of file cd_ripper.h.

Member Typedef Documentation

◆ sig_done

typedef sigc::signal<void(void)> CDRipper::sig_done

"Rip done" signal type.

Definition at line 67 of file cd_ripper.h.

◆ sig_track_progress

typedef sigc::signal<void(unsigned int, unsigned int)> CDRipper::sig_track_progress

"Track progress made" signal type.

Definition at line 64 of file cd_ripper.h.

Constructor & Destructor Documentation

◆ CDRipper()

CDRipper::CDRipper	(	CDDrive &	drive,
		const DiscDB::Disc &	disc,
		const std::string &	albumArtURL,
		const std::string &	mediaRoot )

CDRipper constructor.

Parameters

[in]	drive	Parent CDDrive.
[in]	disc	Fully populated DiscDB::Disc describing the album.
[in]	albumArtURL	URL to the currently shown album art.
[in]	mediaRoot	Path to the root of the removable volume.

Definition at line 10 of file cd_ripper.cc.

◆ ~CDRipper()

CDRipper::~CDRipper ( )

CDRipper destructor.

Definition at line 26 of file cd_ripper.cc.

Member Function Documentation

◆ add_file_art()

void CDRipper::add_file_art ( RipContext * rip_ctx )

private

Adds _album_art_image to the output file.

Parameters

rip_ctx Pointer to the ripping context.

Definition at line 387 of file cd_ripper.cc.

◆ do_rip()

void CDRipper::do_rip	(	CDRipper::RipContext *	rip_ctx,
		bool	continuous = true )

private

The core ripping method interacting directly with ffmpeg.

Parameters

[in]	rip_ctx	Pointer to the ripping context.
[in]	continuous	Whether to continue ripping after the current track.

Definition at line 143 of file cd_ripper.cc.

◆ end_file()

void CDRipper::end_file ( RipContext * rip_ctx )

private

Frees resources in the ripping context specific to the output file.

Parameters

rip_ctx Pointer to the ripping context.

Definition at line 303 of file cd_ripper.cc.

◆ end_rip()

void CDRipper::end_rip ( CDRipper::RipContext * rip_ctx )

private

Ends the ripping process.

Parameters

rip_ctx Pointer to the ripping context.

Definition at line 233 of file cd_ripper.cc.

◆ ensure_output_dir()

void CDRipper::ensure_output_dir ( )

private

Verifies _media_root exists and sets _output_dir.

Definition at line 54 of file cd_ripper.cc.

◆ make_safe()

std::string CDRipper::make_safe ( const std::string & str ) const

private

Used to sanitize folder and file names.

Parameters

[in] str A file or folder path component .

Returns: str with unsafe symbols replaced with underscores.

Definition at line 36 of file cd_ripper.cc.

◆ on_done_notification()

void CDRipper::on_done_notification ( )

private

Called when _dispatcher_done is notified.

Definition at line 50 of file cd_ripper.cc.

◆ on_notification()

void CDRipper::on_notification ( )

private

Called when _dispatcher is notified.

Definition at line 46 of file cd_ripper.cc.

◆ rip() [1/2]

void CDRipper::rip ( )

Rip the entire disc.

Definition at line 311 of file cd_ripper.cc.

◆ rip() [2/2]

void CDRipper::rip ( const int track )

Rip a specific track on the disc.

Parameters

[in] track The 1-based track index.

Definition at line 339 of file cd_ripper.cc.

◆ rip_helper() [1/2]

void CDRipper::rip_helper ( )

private

Private helper for rip().

Definition at line 322 of file cd_ripper.cc.

◆ rip_helper() [2/2]

void CDRipper::rip_helper ( const int track )

private

Private helper for rip(const int track).

Definition at line 350 of file cd_ripper.cc.

◆ signal_done()

CDRipper::sig_done CDRipper::signal_done ( )

Getter for ::_signal_done.

Definition at line 371 of file cd_ripper.cc.

◆ signal_track_progress()

CDRipper::sig_track_progress CDRipper::signal_track_progress ( )

Getter for ::_signal_track_progress.

Definition at line 367 of file cd_ripper.cc.

◆ start_file()

void CDRipper::start_file ( RipContext * rip_ctx )

private

Creates the ouput file, tags it and writes the M4A header.

Parameters

rip_ctx Pointer to the ripping context.

Definition at line 238 of file cd_ripper.cc.

◆ start_rip()

void CDRipper::start_rip ( CDRipper::RipContext * rip_ctx )

private

Begins the ripping process.

Parameters

[in] rip_ctx Pointer to the ripping context .

Definition at line 68 of file cd_ripper.cc.

◆ tag_file()

void CDRipper::tag_file ( RipContext * rip_ctx )

private

Adds textual metadata (album and track information) to the output file.

Parameters

rip_ctx Pointer to the ripping context.

Definition at line 375 of file cd_ripper.cc.

Member Data Documentation

◆ _album_art_image

uint8_t* CDRipper::_album_art_image

private

Raw bytes received from the _album_art_url.

Definition at line 117 of file cd_ripper.h.

◆ _album_art_image_codec

AVCodecID CDRipper::_album_art_image_codec

private

Reflects whether the _album_art_image is JPEG or PNG.

Definition at line 119 of file cd_ripper.h.

◆ _album_art_image_dims

std::pair<int, int> CDRipper::_album_art_image_dims

private

The dimensions of _album_art_image in pixels.

Definition at line 120 of file cd_ripper.h.

◆ _album_art_image_size

int CDRipper::_album_art_image_size

private

The size of _album_art_image.

Definition at line 118 of file cd_ripper.h.

◆ _album_art_url

std::string CDRipper::_album_art_url

private

The URL of the album art currently shown.

Definition at line 116 of file cd_ripper.h.

◆ _disc

const DiscDB::Disc& CDRipper::_disc

private

The fully populated DiscDB::Disc describing the album.

Definition at line 107 of file cd_ripper.h.

◆ _dispatcher

Glib::Dispatcher CDRipper::_dispatcher

private

Used by _thread to safely emit _sig_track_progress.

Definition at line 109 of file cd_ripper.h.

◆ _dispatcher_done

Glib::Dispatcher CDRipper::_dispatcher_done

private

Used by _thread to safely emit _sig_done.

Definition at line 110 of file cd_ripper.h.

◆ _drive

CDDrive& CDRipper::_drive

private

The parent CDDrive.

Definition at line 106 of file cd_ripper.h.

◆ _media_root

std::string CDRipper::_media_root

private

The path to the root of the removable volume.

Definition at line 113 of file cd_ripper.h.

◆ _output_dir

std::string CDRipper::_output_dir

private

The path to the album folder on the removable volume.

Definition at line 114 of file cd_ripper.h.

◆ _output_filename

std::string CDRipper::_output_filename

private

The output filename.

Definition at line 115 of file cd_ripper.h.

◆ _progress

unsigned int CDRipper::_progress

private

The current percentage completion ripping the current track.

Definition at line 112 of file cd_ripper.h.

◆ _sig_done

sig_done CDRipper::_sig_done

private

Emiited when the rip (whole disc or single track) is done.

Definition at line 104 of file cd_ripper.h.

◆ _sig_track_progress

sig_track_progress CDRipper::_sig_track_progress

private

Emitted when the percentage progress ripping a track has increased.

Definition at line 103 of file cd_ripper.h.

◆ _thread

std::thread* CDRipper::_thread

private

Used to execute the ripping process.

Definition at line 108 of file cd_ripper.h.

◆ _track

unsigned int CDRipper::_track

private

The 1-based index of the track currently being ripped.

Definition at line 111 of file cd_ripper.h.

The documentation for this class was generated from the following files:

src/cd/cd_ripper.h
src/cd/cd_ripper.cc

Classes

Public Types

Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ sig_done

◆ sig_track_progress

Constructor & Destructor Documentation

◆ CDRipper()

◆ ~CDRipper()

Member Function Documentation

◆ add_file_art()

◆ do_rip()

◆ end_file()

◆ end_rip()

◆ ensure_output_dir()

◆ make_safe()

◆ on_done_notification()

◆ on_notification()

◆ rip() [1/2]

◆ rip() [2/2]

◆ rip_helper() [1/2]

◆ rip_helper() [2/2]

◆ signal_done()

◆ signal_track_progress()

◆ start_file()

◆ start_rip()

◆ tag_file()

Member Data Documentation

◆ _album_art_image

◆ _album_art_image_codec

◆ _album_art_image_dims

◆ _album_art_image_size

◆ _album_art_url

◆ _disc

◆ _dispatcher

◆ _dispatcher_done

◆ _drive

◆ _media_root

◆ _output_dir

◆ _output_filename

◆ _progress

◆ _sig_done

◆ _sig_track_progress

◆ _thread

◆ _track
